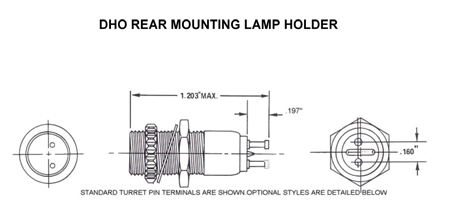

The DHO rear mounting single lampholders are available in three
terminal configuration styles-turrent pin, solders lug. The complete
assembly consists of the DH lampholder and the D Series cap (or
collar).
DH series Lampholders mate with CG or CR Neon, CF incandescent C-lite And CD–LED’s

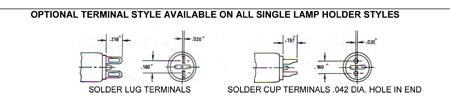

TERMINAL PIN POSITION MATCHES STANDARD C-LITE LENS MARKING ORIENTATION. SOLDER LUG TERMINALS AS SHOWN
BELOW HAVE THIS INTERNAL POSITION.
---------------------------------------------------------------------------------------------

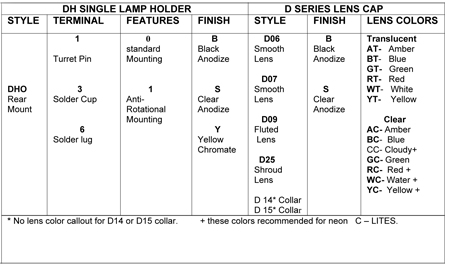

ORDERING INFORMATION
DH series lampholders may be ordered Separately or as complete assemblies. Formulate the part number using the Table above.
EXAMPLE
DHO-10B-D06BRC: Assembly
DHO-10B: Lampholder only
DO6BRC : Lens cap only
PART MARKING:
Part marking includes Eldema and the
Lampholder number (ELDEMA DHO-10B).
Complete assembly numbers are not
Marked since the lens caps or collars
Can be removed and changed.
MILITARY PART NUMBERS
Eldema lampholders DHO-11B meets
LH90/2 and lampholders with collar
DHO-11B-D14B meets LH90/1. |
