TYPE DHP FOR PRESS-IN MOUNTING FROM THE FRONT OF PANEL
TYPE DHC FOR SWAGE-IN MOUNTING FROM THE REAR OF PANEL

For permanent installation requirements, two styles of single lampholders, the DHP and DHC, are available in the DH series that mate with the CF, CG, CD and CR Series C-lites. These  lampholders are anodized aluminum with high dielectric insulation and the same terminal options  available on the standard DH series lampholders.

The DHC and DHP are ideal for those installations where the array-lite assembly is not convenient to use, but where the built-in flush panel appearance is desirable.

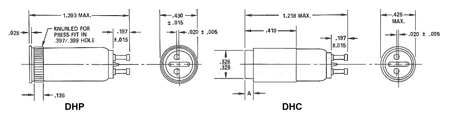

The DHP type lampholders is designed for press fit mounting from the front of the panel into a .397” diameter hole in metal or plastic panels. The DHP may be placed with spacings between centers as close as ½” it may be ordered with either a black or clear anodized finish.

The DHC type lampholder is for swage-in installation from the rear of the panel. This lampholder is available to mate with various panel thicknesses.

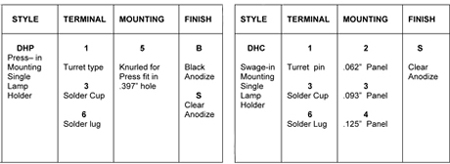

ORDERING INFORMATION Formulate the part number using the table below. EXAMPLE PART NUMBERS DHP – 15B DHP – 12S PART MARKING Parts are marked with Eldema and the Part number.

Extra ring nuts for the lampholders may also be ordered as follows:
Part Number Z-141-10003-010 Black Anodized Finish
Part Number Z- 141-10003-011 Clear Anodized Finish
