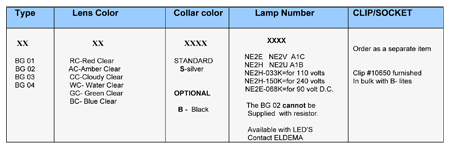

EXAMPLE:
BG03-RCS-NE2H-033K would be a type BG03
With a red clear lens, silver collar, an NE-2H lamp
With a 33K resistor, and standard leads.

LENS MARKING:
Lens marking  may be ordered with any  of the flat top lenses
up to two digits, letters or symbols .187” high. Please specify completely.
Black legends are standard.

SPECIFICATIONS:

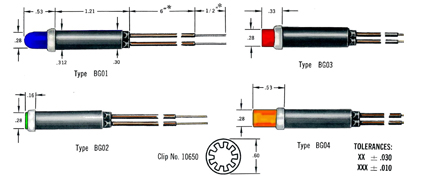

Styles:  01, 02, 03, & 04.
Lens Cap: Injection molded butyrate per Fed-L-P-349
Collar: Aluminum alloy.
Case: Injection molded nylon.
Leads: AWG # 22 tinned copper wire, 7 strand, 1/32” vinyl
Type U.L. approved insulation, 105 C. Standard color is brown, stripped ½”.  Standard length is 6”-other lengths on special order.
Mounting: Mounts in a .312” hole in panels up to .375” Thick with a spring clip.
