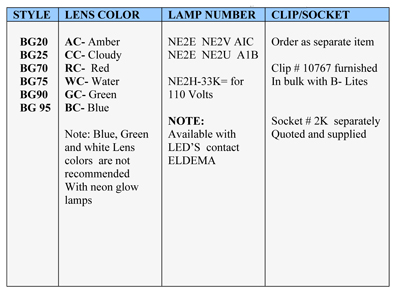

EXAMPLE
BG90-RC-NE2E Would be style BG90, red clear lens and NE2H lamp.

The BG20, BG70 and BG90 may be furnished with attached resistor. The style available is listed as the NE2H with 33K resistor which is the recommended combination for 120 volt. Other lamp-resistor combinations obtained on special order in production quantities.

The 2K sockets is a low cost connector for use with the 2 pin B-lites, styles BG25 BG75 and BG95. The socket is of military grade molded material with tin plated solder terminals.

SPECIFICATIONS

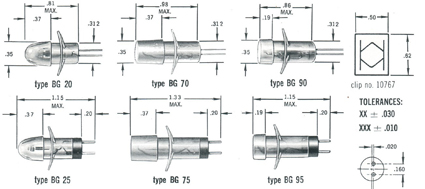

Styles 20,25,70,75,90 & 95

Lens Cap:  Injection molded butyrate  FED-L-P-349
Neon Lamp:  NE2H Type
Mounting:  Mounts in 5/16” hole in panels up
                  To 1/8 thick with tinnerman clip.
Leads:  Approximately 2” wire leads
